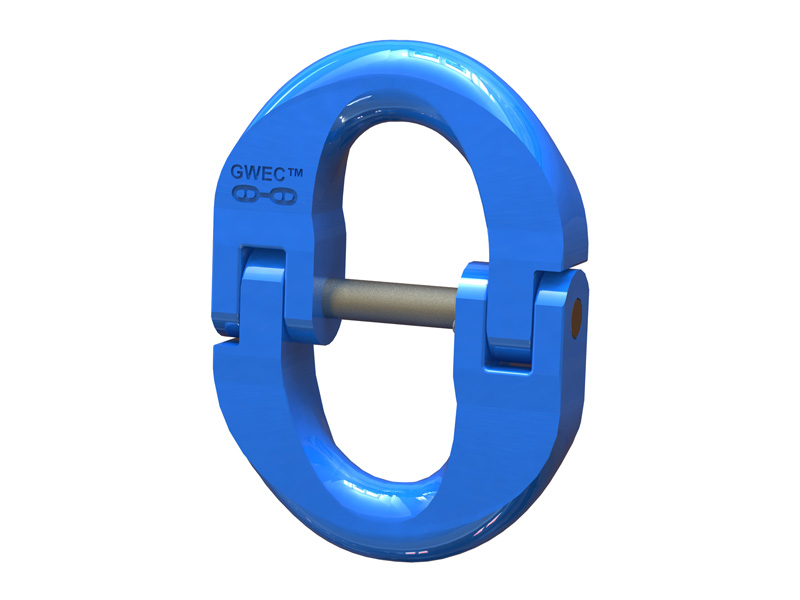

Weak Link Connector
STDR-3060
Weak Link Connector |
|
|---|---|
| Product Codes | STDR-3060 |
| Mat. Grade | R4 |
| Range | 100MT - 300MT |
| Standard | OCIMF Guidelines for Offshore Tanker Operations & Non-Standard |
| Class | IACS W22 |
| Certification | Full Classification or Test Report |

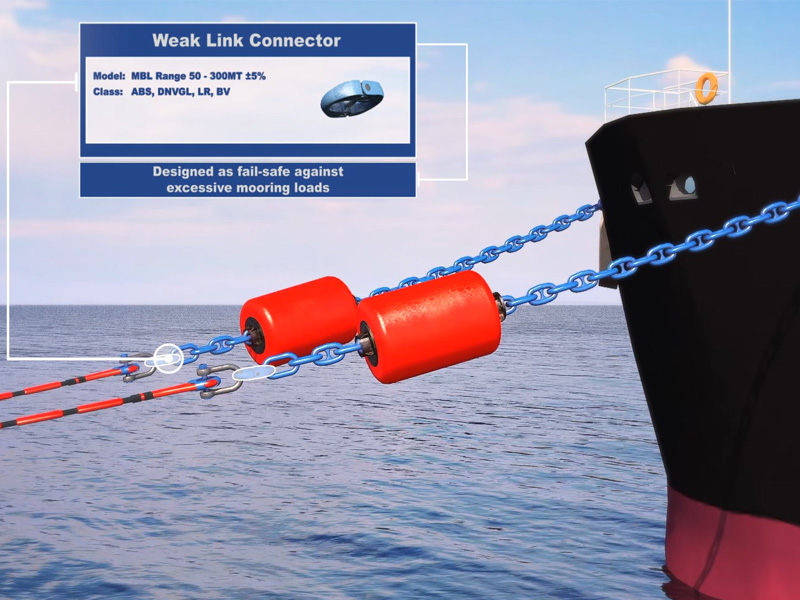

| Detail | For use in F(P)SO & SPM. Intended to fit between Shuttle Tanker Chafe Chain and HD Rope Shackle. Designed to provide positive protection from mooring loads in excess of the minimum yield load through the application of Shear Pins with tolerance ±5% MBL. |
