Chafe Chain
STDR-3040, 3041 & 3042
Chafe Chain |
|
|---|---|
| Product Codes | STDR-3040, 3041 & 3042 |
| Mat. Grade | 3, R3 & R4 |
| Range | 100MT, 200MT & 250MT |
| Standard | OCIMF Guidelines for Offshore Tanker Operations & Recommendations for Equipment Employed in Bow Mooring of Conventional Tankers at SPM, ISO 1704, ISO 20438, MESC 53.05.10 & Non-Standard |
| Class | IACS W18 & W22 |
| Certification | Full Classification or Test Report |

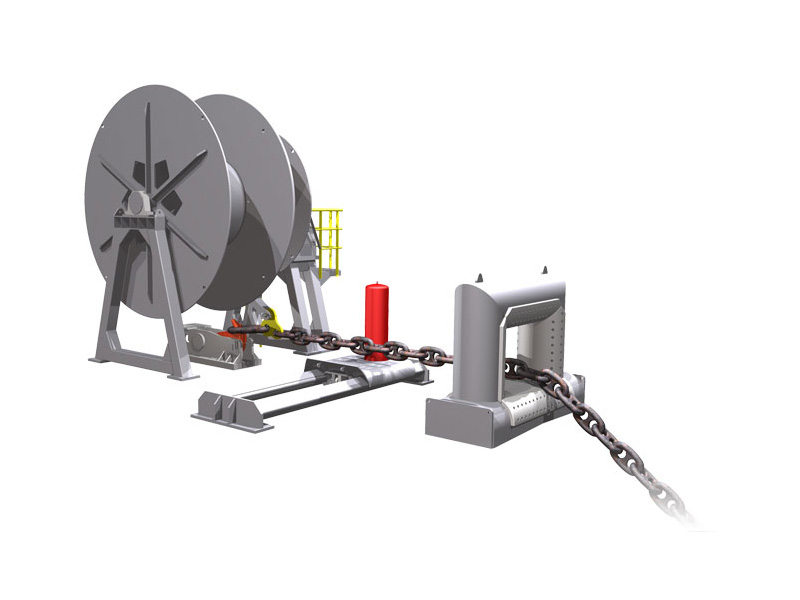

| Detail | For use in F(P)SO & SPM. Intended to secure topside Mooring Hawser lines at F(P)SO or Shuttle Tanker end. Designed to suit tandem or single configurations but bespoke arrangements also available, including QRH Pick-Up & Drop Links, subject to design approval. |
